Обзор документа
Руководство по ремонту для LAMBORGHINI ZF TMT-32, семейство Tractor components – Transmission – ZF. Цифровой PDF на русском языке, 204 страниц.
Соответствующее русское оглавление содержит 5 разделов и 61 отдельных тем.
Основные разделы
- Transmission
Сведения о документе
- Бренд: LAMBORGHINI
- Семейство: Tractor components – Transmission – ZF
- Модель: ZF TMT-32
- Тип документа: Руководство по ремонту
- Язык: Русский
- Страницы: 204
- Размер файла: 162.09 MiB
- Формат: Цифровая загрузка PDF
Совместимость
Перед покупкой убедитесь, что модель и серийный номер вашей машины соответствуют LAMBORGHINI ZF TMT-32.
Полное оглавление
Transmission
Technical data
- Settings
- Tightening Torques
- Единицы измерения и таблица преобразования единиц измерения
Special tools and equipment
- Workshop Equipment
- Standard tools and fixtures
- Operating supplies and auxiliary materials
Disassembly
- Remove oil supply
- Remove and dismantle hydraulic control unit (clutch control unit)
- Removing wiring harness
- Removing the pressure filter
- Remove and dismantle hydraulic control unit (system control unit)
- Removing pump
- Remove thermocouple
- Remove inductive transmitter
- Remove valve block
- Remove speed transmitter and speed sensors
- Remove suction filter
- Remove input shaft
- Remove and dismantle cartridge
- Removing and dismantling pump drive

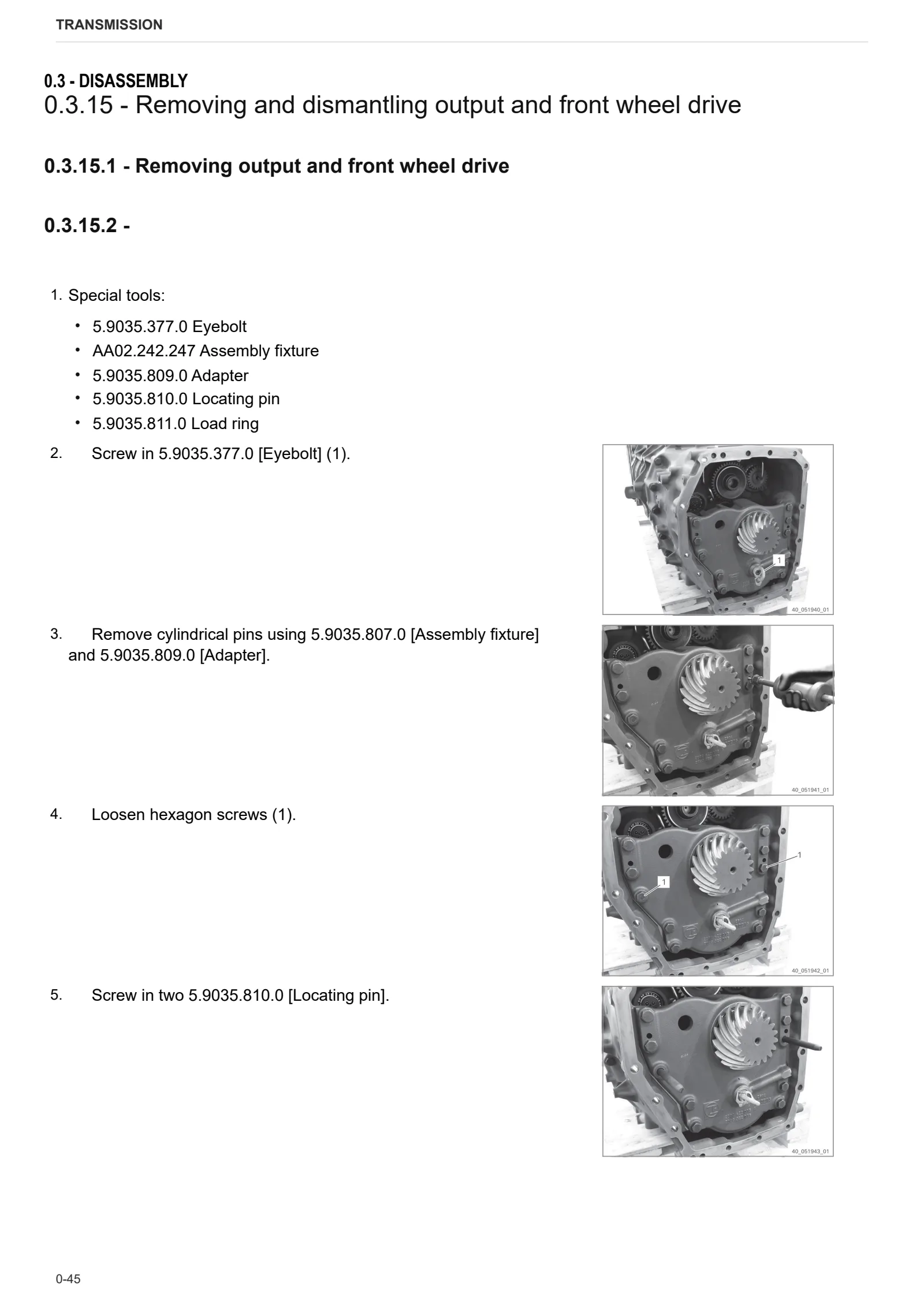

- Removing and dismantling output and front wheel drive
- Removing and dismantling the flywheel housing/connection housing
- Removing and dismantling the output gear, drive gear and spur gear
- Removing and dismantling the clutch housing
- Removing and dismantling brake
- Removing and disassembling shifting drum
- Removing the spur gear

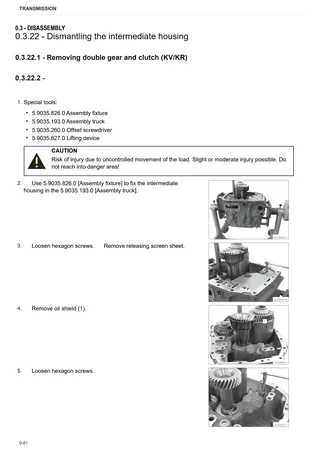

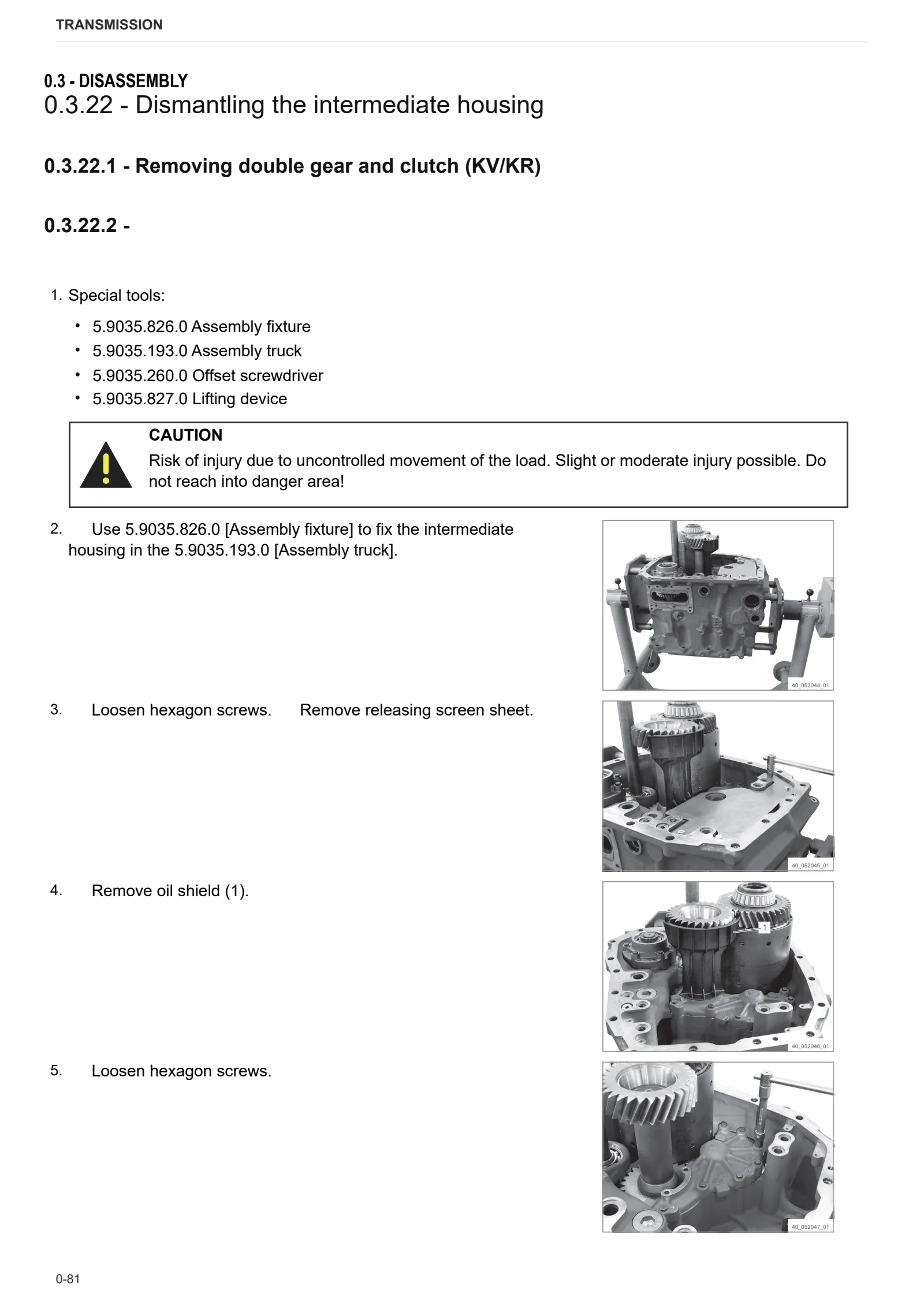

- Dismantling the intermediate housing
- Dismantling clutch (KV)
- Dismantling clutch (KR)
- Removing and dismantling intermediate gear
- Removing and dismantling input and pump
- Removing and dismantling central shaft
Assembly
- Assembling the intermediate housing
- Assembling and installing central shaft
- Assembling and installing intermediate gear
- Assembling clutch (KV)
- Assembling clutch (KR)
- Assembling double gear
- Assembling clutch housing
- Installing the spur gear
- Assembling and installing shifting drum
- Assembling and installing brake
- Installing clutch housing on the intermediate housing

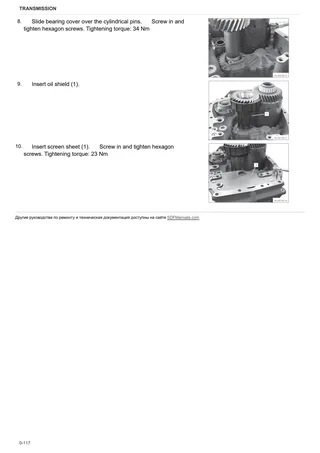

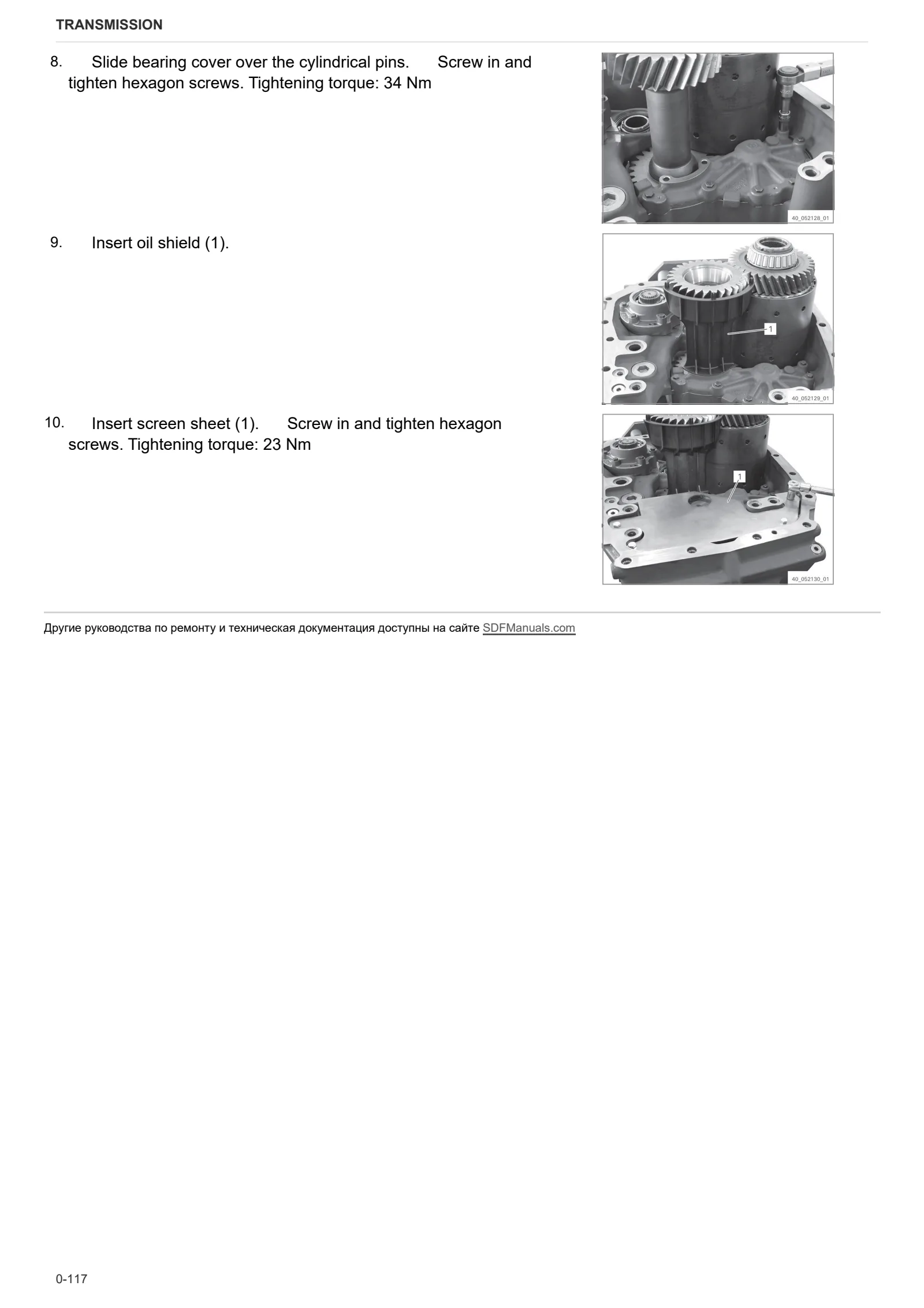

- Installing drive gear, spur gear and output gear
- Assembling and installing flywheel housing/connection housing

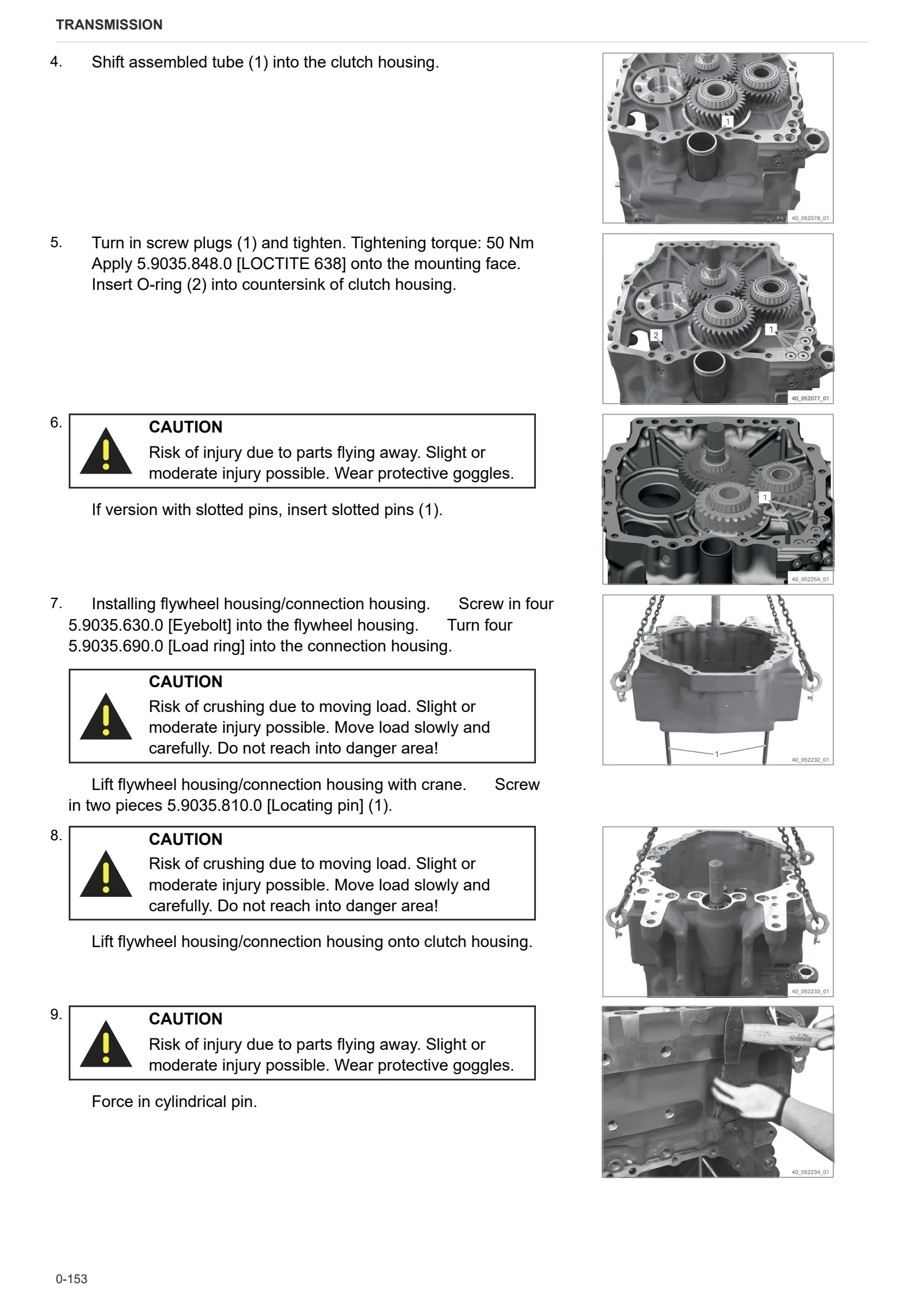

- Assemble and install cartridge
- Assembling and mounting pump drive
- Install pump
- Assembling and installing front wheel drive and output
- Install thermocouple
- Assemble and install hydraulic control unit (system control unit)
- Mounting the pressure filter
- Fitting wiring harness
- Assemble and install hydraulic control unit (clutch control unit)
- Install suction filter
- Attaching the speed transmitter and speed sensors
- Installing the valve block
- Install inductive transmitter
- Install oil supply
- Installing screw plugs
